SO-CAL Speed Shop Step Boxed™ 1932 Frame
SO-CAL Speed Shop Step Boxed™ 1932 Frame
Regular price
$3,995.00 USD
Regular price
Sale price
$3,995.00 USD
Unit price
per
Couldn't load pickup availability
Note: Please contact our sales dept. so we can get you the best shipping rates available.
All SO-CAL Speed Shop Step-Boxed™ 1932 frame / chassis use American Stamping rails for strength and authenticity. All frames are numbered and tagged for added value and include the following: |
|||||||||||||
![]() |
The strength of an unground fillet weld on the boxing plates. | ||||||||||||
![]() |
Recessed boxing plates which increase clearance for: |
||||||||||||
|
|||||||||||||
![]() |
A “swept C” in the rear which minimizes the stress of the cut and spreads the load over a greater area. | ||||||||||||
![]() |
A universal trans mount that cleverly accommodates TH350, TH400, 700R4 transmissions as well as 4, 5 or 6-speed manuals. | ||||||||||||
![]() |
Front crossmember angled at 7 degrees for correct caster. |
All SO-CAL Step-Boxed™ frames include the following: |
|||
![]() |
Brake proportioning valve mounting pad | ![]() |
All crossmembers |
![]() |
Engine and trans mounts | ![]() |
Steering box mount |
![]() |
Front Panhard bar bracket | ![]() |
Front brake line tabs |
![]() |
Master cylinder bracket | ![]() |
Rear radius rod tabs |
![]() |
Brake pedal mount |
NOTE: Due to all the variations between stock and reproduction bodies SO-CAL Step-Boxed™ ’32 chassis come without body mounting holes—we felt it best to leave the hole positioning up to the builder. However, strategically placed under the top rail are welded-in bosses that can be drilled and tapped for body mounting once the position of the body has been finalized in relation to the firewall and the radiator/grille shell. |

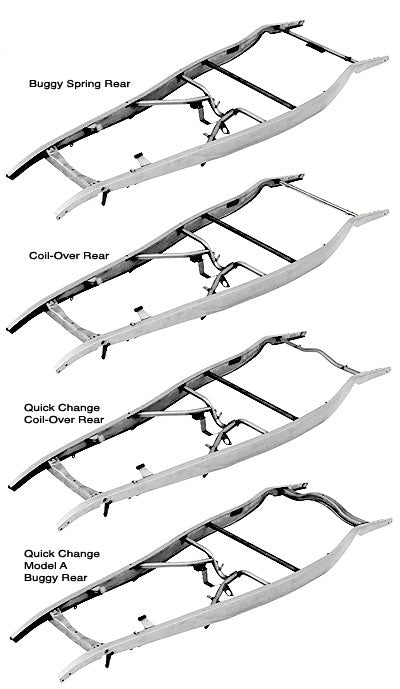

We strongly advise that you call and speak to one of our crew about your needs and exact specifications. Remember also, the SO-CAL Step-Boxed™ chassis is available with a coil-over or buggy spring quick-change option—call for details and pricing. |
NOTE: For those who want something other than a small-block Chevy motor, the SO-CAL Step-Boxed™ chassis is now available without engine or trans mounts. It is also available special order with small-block Ford and big-block Chevy mounts. Call for more information. |
Note: Please contact our sales dept. so we can get you the best shipping rates available.
CHASSIS DIMENSIONS NOT ON PALLET ARE 146"x44"x10". (200lbs.)
CHASSIS PALLET DIMENSIONS ARE 165"x48"x4". (110lbs.)
